The DryWave WDH3
Introducing the Next Generation Waveguide Dehydrator
Built for the demands of modern RF infrastructure — deeper dewpoints, smarter monitoring, and greater installation flexibility than ever before.
Moisture is the silent killer of RF infrastructure.
Moisture infiltration in waveguide and transmission line systems doesn’t announce itself. It shows up as unexplained return loss, intermittent arcing, connector oxidation, and systems that degrade faster than they should.
The DryWave WDH3 was engineered to eliminate that risk — quietly, reliably, and continuously — with a platform built for the way modern RF systems are deployed.
WHAT’S NEW IN THE WDH3
Everything you needed. Nothing you didn't.
| Feature | Description |
|---|---|
| ❄️ Aftercooling Circuit | Integrated aftercooling drives dewpoint performance exceeding -40°F — well beyond conventional membrane dehydrators. Critical protection for high-value waveguide infrastructure. |
| 📊 Smart Digital Gauges | Dual smart digital pressure gauges with color-coded local indication provide accurate, at-a-glance status. Built-in analog output (0–10V, 4–20mA, or 1–5V) for integration with your monitoring system. |

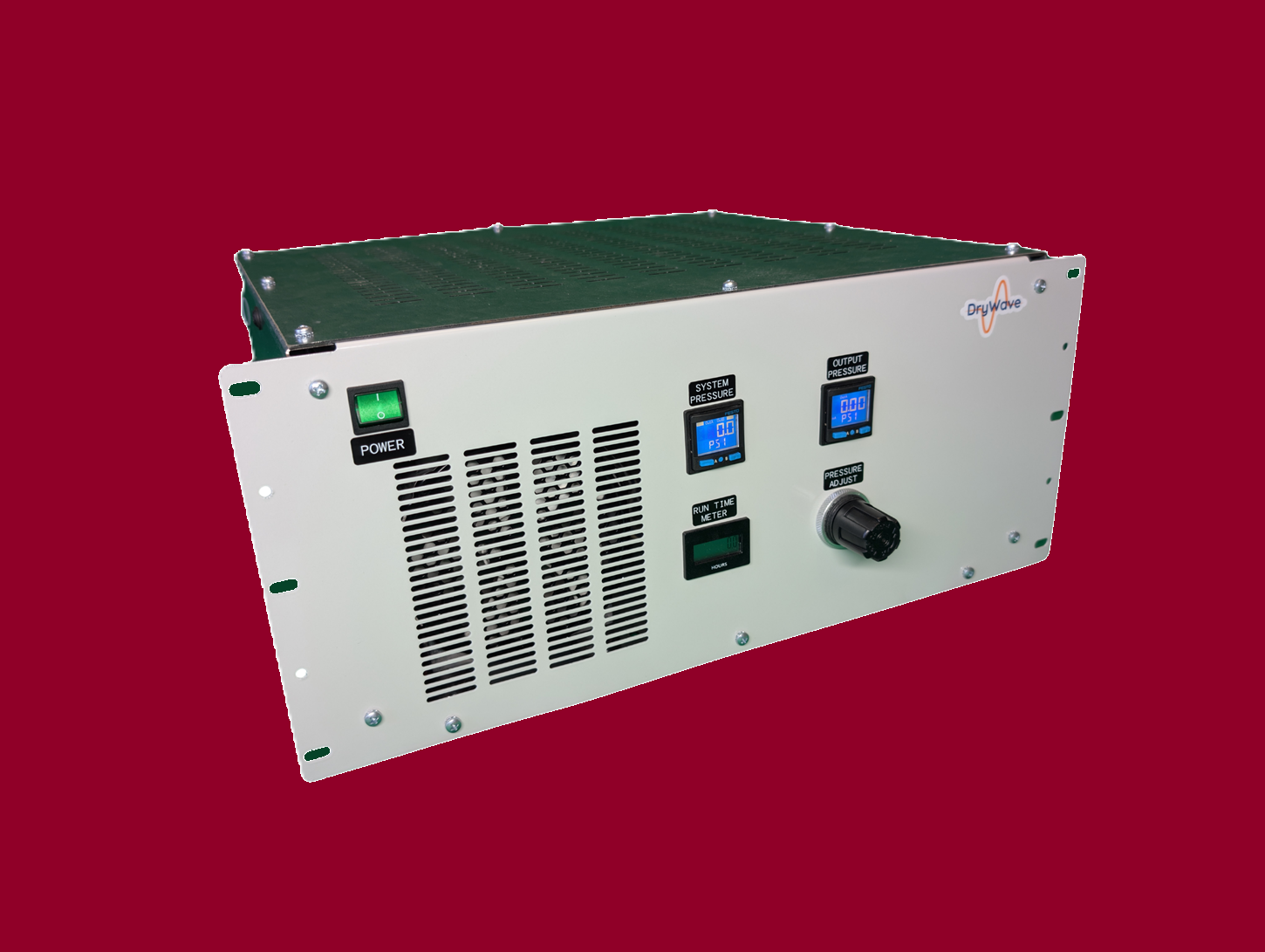

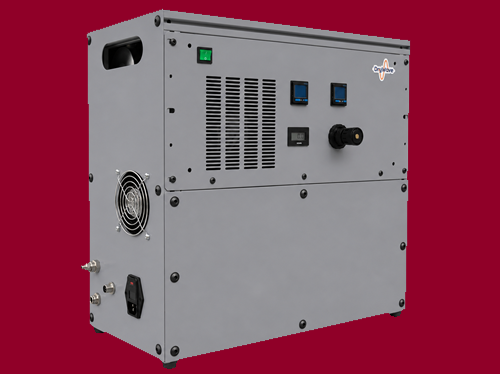

| 📦 Two Form Factors | 5U rack mount for equipment rooms and telecom shelters. Freestanding (FS) for tower base stations and field deployments. Same proven internals — packaged for your installation. |
| 🎯 Precision Regulator Option | The Precision series features a Fairchild Model 10 regulator with 1/8″ water column sensitivity and < 0.1 PSI hysteresis. Designed for sensitive or fragile waveguide loads where pressure stability matters most. |
| 📡 Ethernet Remote Monitoring | Optional ERM module adds a Wago CC100 PLC with SNMP and REST API. Monitor pressure, alarms, and compressor runtime from your NMS or BMS — no site visit required. |
Find the Right Configuration
The WDH3 is available in 8 configurations — two form factors, standard or precision regulator, with optional Ethernet remote monitoring. Here’s a quick comparison to help you choose.
| Standard | Precision | ERM Add-on | |
|---|---|---|---|
| Output Pressure | 0.5–15 or 0.5–30 PSI | 0–10 or 0–30 PSI | Any model |
| Regulator | Relieving | Fairchild Model 10 | Per base model |
| Sensitivity | Standard | 1/8″ water column | — |
| Dewpoint | -40°F | -40°F | — |
| Remote Monitoring | — | — | SNMP + REST API |
| PLC | — | — | Wago CC100 |
| Form Factor | 5U Rack or FS | 5U Rack or FS | 5U Rack or FS |
All models available in 120VAC or 240VAC, 50/60Hz. Available in 5U rack mount (19″ rack) or freestanding enclosure.
All models available for purchase on our e-commerce website.
WHY TSI SOLUTIONS
Built on decades of waveguide expertise.
TSI Solutions has been protecting waveguide and transmission line systems since the introduction of the WDH series. The WDH3 isn’t a departure from what made our products trusted — it’s the next chapter.
When your transmission line needs to stay dry, we’re the team that keeps it that way.
Download the DryWave WDH3 Brochure
Get the complete product overview — specifications, configurations, and ordering information — in a single PDF.
We respect your privacy. Your information will only be used to send you relevant product information from TSI Solutions. You may unsubscribe at any time.
Ready to protect your waveguide system?
Our team can help you select the right configuration and get a quote in your hands quickly.
Call us 800-342-4874
