Clean & Dry Air for Clear Communications Our Dehydrators are Rugged & Reliable Compressed Air Systems for Satellite, Radar, Aerospace, Telecommunications, Military, TV and Radio Broadcast Applications

All of TSI’s waveguide dehydrators are built with the following standard features:

  • Membrane dryer – Instead of desiccant, we use a high efficiency, no-maintenance membrane dryer protected by a 0.01 micron coalescing filter
  • Output fittings – 1/4” NPT port, 1/4” and 3/8” push-in fittings also included
  • Alarm contacts – Low pressure alarm and excessive run time alarm
  • Air compressor – We use heavy duty Gast air compressors

Optional features include:

•Dual compressors for fail-safe operation  •Remote monitoring



Free Standing Dehydrator
Free Standing Dehydrator

TSI’s open frame, free standing unit offers an easily accessible and transportable design. This unit is available with two pressure output options (0.2 – 15.0 psi and 0.2 – 30 psi).  You can choose between 110/120 or 220/240VAC models (both in 50 or 60Hz).  For output pressure monitoring see the Free Standing Enclosed model.  Click Here to see all our waveguide options.

TSI’s enclosed frame, free standing unit features an easily transportable design.  This unit is available with two pressure output options (0.2 – 15.0 psi and 0.2 – 30 psi).  You can choose between 110/120 or 220/240VAC models (both in 50 or 60Hz).  Output pressure monitoring is available as an option. Click Here to see all our waveguide options.

Free Standing Enclosed Dehydrator
Free Standing Enclosed Dehydrator

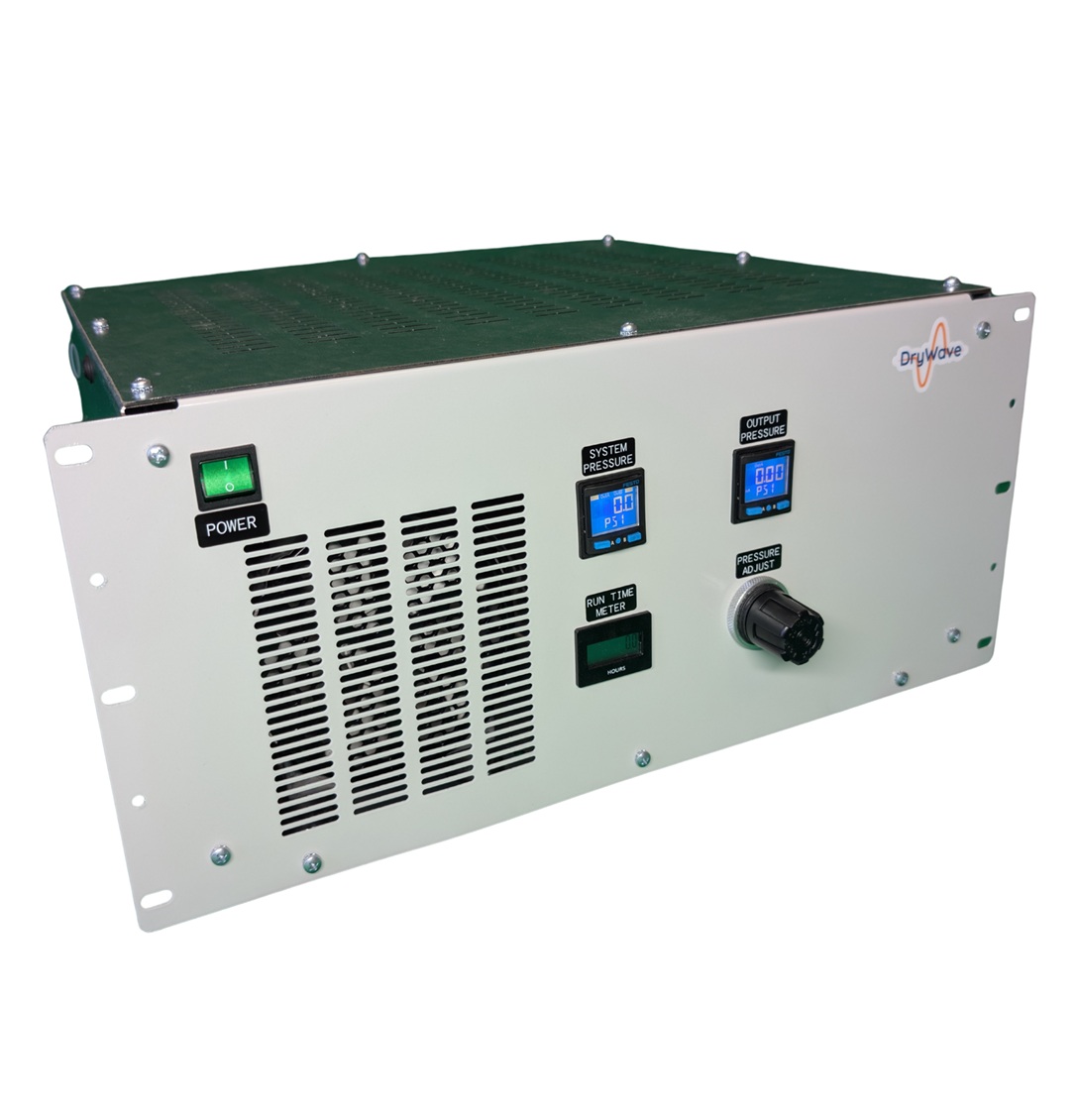

5U Rack Mount Dehydrator
5U Rack Mount Dehydrator

TSI’s rack mount units offer easy installation, a very robust enclosure and all the options of  a free standing unit.  Our standard pressure models (<8 PSI) are available in a space saving 3U (5.25” tall) enclosure and our high pressure units (up to 25 PSI) come in a 5U (8.75” tall) enclosure.  Rack mount units are customizable to include all remote monitoring options.  We also offer a model that incorporates dual compressors for applications that require redundant, fail-safe operation. Click Here to see all our waveguide options.

TSI’s Waveguide Dehydrators are configurable to meet your specific requirements.
We offer free standing units (both open frame and enclosed) as well as rack mount units.

CONFIGURE YOUR STANDARD WAVEGUIDE DEHYDRATOR

Need A Custom Waveguide Dehydrator?

TSI can engineer a custom solution for your special application. We have designed and built small, space-saving units as well as large, multi-port dehydrators that can serve up to 20 waveguides. This solution, when practical, can save you space and money.

Please contact Greg Coughlin at 770-580-1007 or gcoughlin@tsisolutions.us with your requirements.

Compact Design for Mobile Applications
